Model:
Inquiry
Product Description:

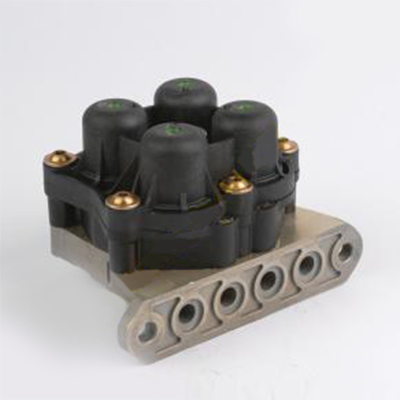

SUNDOZ NO:SAP4605
Ref.KNORR NO:AE4605

Ref. Renault 5010422971

Ref. Iveco 5006143813

Product Specification:
  • Air Inlet port(s) sizeM22x1,5
  • Air Delivery port(s) size4 x Ø 9mm
  • Circuit 1 - Feedback with Bypass. Open/close pressure [bar]7,0
  • Circuit 2 - Feedback with Bypass. Open/close pressure [bar]7,0
  • Circuit 3 - Feedback with no Bypass. Open/close pressure [bar]7,3
  • Circuit 4 - Feedback with no Bypass. Open/close pressure [bar]7,0
  • With bleed-back safety feature controlled by Circuit 1.
  • Internal series supply from Circuits 1 and 2 to 3 and 4.
