Home > Products > Air Brake System > Four Circuit Protection Valve > SAP2100 SAP2210 SAP2400
Model:
Inquiry
Product Description:

SUNDOZ NO:SAP2100
ORG N0:934 702 210 0
DAF NO:1518178
MAN NO:81.52151-6020
MERCEDES NO:0014313506 / 0014319806

SUNDOZ NO:SAP2210
ORG N0:934 702 221 0
DAF NO:1518179
MAN NO:81.52151-5056
MERCEDES NO:0014313506

SUNDOZ NO:SAP2240
ORG N0:934 702 240 0
DAF NO:1518180
MAN NO:81.52151-6037
MERCEDES NO:0024209224

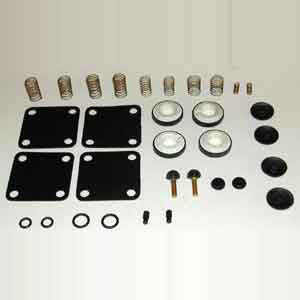

REPAIR KIT
SUNDOZ NO:SAPR0515
ORG NO:934 702 005 2

Product Specification:

SAP2100

1. Max. operating pressure: 10 bar
2. Opening pressure 21: 7.0-0.3 bar
3. Opening pressure 22: 7.0-0.3 bar
4. Opening pressure 23: 7.0-0.3 bar
5. Opening pressure 24: 7.0-0.3 bar
6. Port 1: M 22x1.5
7. Port 11: M 16x1.5
8. Port 12: M 16x1.5
9. Port 21: M 16x1.5
10. Port 22: M 16x1.5
11. Port 23: M 16x1.5
12. Port 24: M 16x1.5
13. Closing pressure 21: >=5.0 bar
14. Closing pressure 22: >=5.0 bar
15. Closing pressure 23: >=5.0 bar
16. Closing pressure 24: >=5.0 bar
17. Type: dynamic



SAP2210

1. Max. operating pressure: 20 bar
2. Opening pressure 21: 7.0-0.3 bar
3. Opening pressure 22: 7.0-0.3 bar
4. Opening pressure 23: 7.0-0.3 bar
5. Opening pressure 24: 7.0-0.3 bar
6. Port 1: M 22x1.5
7. Port 11: M 16x1.5
8. Port 12: M 16x1.5
9. Port 21: M 16x1.5
10. Port 22: M 16x1.5
11. Port 23: M 16x1.5
12. Port 24: M 16x1.5
13. Closing pressure 21: >=5.0 bar
14. Closing pressure 22: >=5.0 bar
15. Closing pressure 23: >=5.0 bar
16. Closing pressure 24: >=5.0 bar
17. Type: dynamic



SAP2400

1. Max. operating pressure: 10 bar
2. Opening pressure 21: 7.0-0.3 bar
3. Opening pressure 22: 7.0-0.3 bar
4. Opening pressure 23: 6.5-0.3 bar
5. Opening pressure 24: 6.5-0.3 bar
6. Port 1: M 22x1.5
7. Port 11: M 16x1.5
8. Port 12: M 16x1.5
9. Port 21: M 16x1.5
10. Port 22: M 16x1.5
11. Port 23: M 16x1.5
12. Port 24: M 16x1.5
13. Closing pressure 21: >=6.5 bar
14. Closing pressure 22: >=6.5 bar
15. Closing pressure 23: >=5.7 bar
16. Closing pressure 24: >=5.7 bar
17. Type: dynamic
