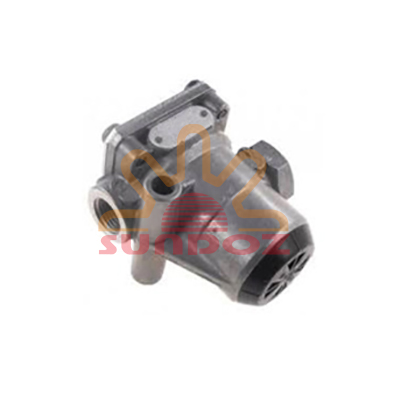

SPL4000 / SPL0010 / SPL0310 / SPL4004

Home > Products > Air Brake System > Pressure Limiting Valve > SPL4000 / SPL0010 / SPL0310 / SPL4004 / SPL4063 / SPL0050 / SPL0350
Model:
Inquiry
Product Description:

SUNDOZ NO:SPL4000
ORG NO:475 015 400 0 / 4750154000

SUNDOZ NO:SPL4004
ORG NO:475 015 004 0 / 4750150040
1. 001 431 63 06 / 0014316306 DaimlerChrysler
2. 0445 7300 Iveco
3. 11017339 Neoplan
4. 1102.432.00 Neoplan
5. 110243200 Neoplan
6. 1517895 DAF
7. 81 52101 6153 MAN
8. 81 52101 6154 MAN
9. 81 52101 9153 MAN

SUNDOZ NO:SPL0350
ORG NO:475 015 035 0 / 4750150350

SUNDOZ NO:SPL0010
ORG NO:475 015 001 0 / 4750150010

SUNDOZ NO:SPL0310
ORG NO:475 015 031 0 / 4750150310
Iveco:0478 0200
Daf:1505096

SUNDOZ NO:SPL4063
ORG NO:475 015 063 0 / 4750150630
OE NO: 20382312 VOLVO

SUNDOZ NO:SPL0050
ORG NO:475 015 005 0 / 4750150050

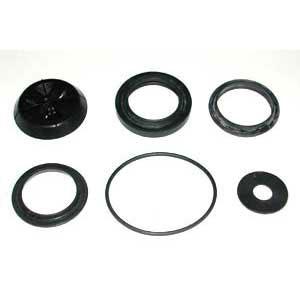

REPAIR KIT
SUNDOZ NO:SPL4000.K
ORG NO:475 015 001 2 / 4750150012
MERCEDES NO: 000 430 49 60 / 0004304960
IVECO NO: 0812 4173
VOLVO NO: 3091219
IVECO NO: 4249 1992
MAN NO: 81 52161 6269



Product Specification:

SPL4000:
1. Comments: p1 max. = 20 bar if p1 = variable
2. Max. operating pressure: 10 bar
3. Delivered pressure: 4.5¡Ó0.2 bar
4. at p1=: 8 bar
5. Nominal diameter: 10
6. Opening pressure of safety valve: 6.7 bar
7. Range of adjustment: 3.5 ... 4.5 bar
8. Port threads: M 16x1.5

SPL0010:
1. Comments: p1 max. = 20 bar if p1 = variable
2. Max. operating pressure: 10 bar
3. Delivered pressure: 7.4+0.2 bar
4. at p1=: 16 bar
5. Nominal diameter: 10
6. Opening pressure of safety valve: 9.9 bar
7. Range of adjustment: 4.0 ... 8.0 bar
8. Port threads: M 16x1.5

SPL0310:
1. Comments: p1 max. = 20 bar if p1 = variable
2. Max. operating pressure: 10 bar
3. Delivered pressure: 7.5¡Ó0.2 bar
4. at p1=: 11 bar
5. Nominal diameter: 10
6. Opening pressure of safety valve: 10 bar
7. Range of adjustment: 4.0 ... 8.0 bar
8. Port threads: M 16x1.5

SPL4004:
1. Max. operating pressure: 10 bar
2. Delivered pressure: 3.5+0.2 bar
3. at p1=: 8 bar
4. Nominal diameter: 10
5. Opening pressure of safety valve: 5.6 bar
6. Range of adjustment: 3.5 ... 4.5 bar
7. Port threads: M 16x1.5

SPL0050:
1. Comments: p1 max. = 20 bar if constant
2. Max. operating pressure: 10 bar
3. Delivered pressure: 8+0.3 bar
4. at p1=: 12 bar
5. Nominal diameter: 10
6. Opening pressure of safety valve: 10.5 bar
7. Range of adjustment: 4.0 ... 8.0 bar
8. Port threads: M 16x1.5
