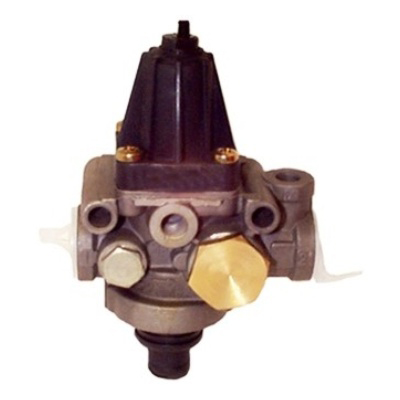

SAU9089 / SAU9085 / SAU9072

Home > Products > Air Brake System > Unloader Valve > SAU9060 / SAU9071 / SAU9080 / SAU9089 / SAU9085 / SAU9072
Model:
Inquiry
Product Description:

SAU9060:

1. Cut-out pressure: 8.1±0.2 bar
2. Operational range: 0.6+0.4 bar
3. Temperature range: -40° ... +150 °C
4. Port threads: M 22x1.5
5. Safety Valve: 12.0+2 bar
6. 22 For other uses: M 12x1.5
7. Tyre inflation 1-2: closed with fitting: 975 303 920 2
8. Port 23 for air dryer: without
9. Port 4: without
10. Muffler: without silencer
11. Non-return valve in port 21: yes





SAU9089:
1. Comments: Alternative: cut-out pressure needs adjusting
2. Cut-out pressure: 9.5±0.2 bar
3. Operational range: 0.7+0.5 bar
4. Temperature range: -40° ... +150°C
5. Port threads: M 22x1.5
6. Safety valve: 14.0+3 bar
7. 22 For other uses: closed; M 12x1.5
8. Tyre inflation 1-2: without
9. Port 23 for air dryer: M 12x1.5
10. Port 4: M 12x1.5
11. Muffler: Silencer 975 303 531 2
12. Non return valve in port 21: yes



SAU9071:

1. Cut-out pressure: 8.5±0.2 bar
2. Operational range: 0.7+0.5 bar
3. Temperature range: -40° ... +150 °C
4. Port threads: M 22x1.5
5. Safety Valve: 12.0+2 bar
6. 22 For other uses: closed; M 12x1.5
7. Tyre inflation 1-2: without
8. Port 23 for air dryer: M 12x1.5
9. Port 4: M 12x1.5
10. Muffler: without silencer
11. Non-return valve in port 21: without





SAU9072:
1. Cut-out pressure: 8.5±0.2 bar
2. Operational range: 0.7+0.5 bar
3. Temperature range: -40¢X ... +150 ¢XC
4. Port threads: M 22x1.5
5. Safety valve: 14.0+3 bar
6. 22 For other uses: closed; M 12x1.5
7. Tyre inflation 1-2: without
8. Port 23 for air dryer: M 12x1.5
9. Port 4: M 12x1.5
10. Muffler: Silencer 975 303 531 2
11. Non return valve in port 21: yes



SAU9080:

1. Cut-out pressure: 9.5±0.2 bar
2. Operational range: 0.8+0.5 bar
3. Temperature range: -40° ... +150°C
4. Port threads: M 22x1.5
5. Safety Valve: 12.0+2 bar
6. 22 For other uses: without
7. Tyre inflation 1-2: closed with fitting: 975 303 920 2
8. Port 23 for air dryer: without
9. Port 4: without
10. Muffler: without silencer
11. Non-return valve in port 21: yes






SAU9085:
1. Cut-out pressure: 9.5±0.2 bar
2. Operational range: 0.7+0.4 bar
3. Temperature range: -40° ... +150°C
4. Port threads: M 22x1.5
5. Safety valve: 12.0+2 bar
6. 22 For other uses: without
7. Tyre inflation 1-2: without
8. Port 23 for air dryer: M 12x1.5
9. Port 4: M 12x1.5
10. Muffler: without silencer
11. Non return valve in port 21: without

Product Specification:

SUNDOZ NO:SAU9060
ORG:975 303 060 0
1. 0658098 DAF
2. 1102441544303 NEOPLAN

3.6778243 VOLVO



SUNDOZ NO:SAU9071
ORG:975 303 071 0
1. 1518280 DAF
2. 0034314806 MB



SUNDOZ NO:SAU9080
ORG:975 303 080 0
1. 1518281 DAF
2. 04700994 IVECO

3. 0014312206 MB



SUNDOZ NO:SAU9089
ORG:975 303 089 0
1. 1505482 DAF
2. 469239 SC



SUNDOZ NO:SAU9085
ORG NO:975 303 085 0
1. 002 431 66 06 DaimlerChrysler
2. 6125 9232 Iveco



SUNDOZ NO:SAU9072
ORG:975 303 072 0
1. 000 431 1806 DaimlerChrysler
2. 0341 0537 Iveco
3. 0341 0538 Iveco
4. 0342 9296 Iveco
5. 105101 DAF
6. 1505479 DAF
7. 1612 011 FAUN
8. 2530 12 121 9362 NATO
9. 2530 12 125 1261 NATO
10. 302239 DAF
11. 457735 SC
12. 457739 SC
13. 81.81011-7110 MAN

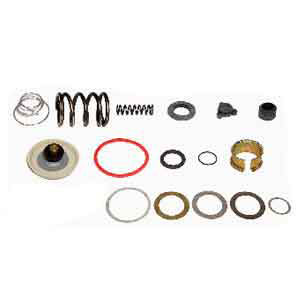

REPAIR KIT
SUNDOZ NO:SAUR9089
ORG NO: 975 303 000 2
1. 001 430 77 60 DaimlerChrysler
2. 0689405 DAF
3. 0812 4167 Iveco
4. 2530 12 348 0710 NATO
5. 639398 SC
6. 689405 DAF
7. 969 344 00 Terex-Demag
8. F186.880.020.070 Fendt
9. FBU 4800 Leyland DAF
10. FBU4800 Leyland DAF
