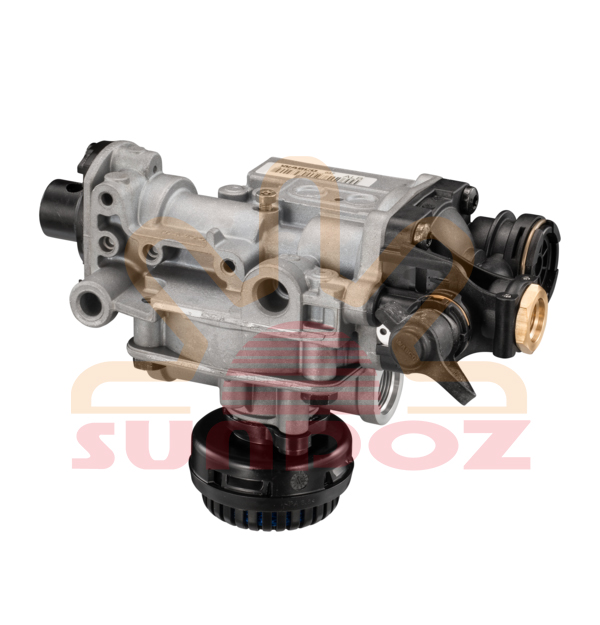

SAL4703

Home > Products > Air Brake System > Load Sensing Valve > SAL4703
Model:
Inquiry
Product Description:
SUNDOZ NO:SAL4703
ORG NO:475 720 003 0
  • ASHOK LEYLAND
    445332027
  • DAF
    1402177
  • LEYLAND-DAF
    ABRA040
  • PACCAR
    1402177
Product Specification:
    • Break point
      0.6 bar
    • Comments
      With test port
    • Control Pressure
      Max. 10 bar
    • Control Stroke
      0° to +30°
    • Cooling
      Air
    • Distance between bolts
      26.0 mm
    • Exhaust
      With silencer
    • Max. operating pressure
      13 bar
    • Mounting
      2x M10
    • Port thread 1
      M22 x 1.5 JED-388
    • Port thread 2
      M22 x 1.5 JED-388
    • Port thread 4
      M16 x 1.5 JED-388
    • Port threads
      M22 x 1.5
    • Regulating ratio
      1:5.3
    • Temperature range
      -40°C to +80°C
    • Total Stroke
      -45° to +95°
    • Type
      Mechanical
    • Type of operation
      Dynamic
    • Calculated Volume (dm³)
      5.0154
    • GTIN
      04057875226253
    • Size (mm x mm x mm)
      226 x 146 x 152
    • Weight (kg)
      1.386
